BLG type electric concrete placing boom

The two arm sections have horizontal amplitude, compact structure, can be lifted and moved, and the consumption is fixed during use. It can be lifted to a suitable pouring position using lifting equipment as needed, and can be placed on the floor, platform, simple rack or trailer, providing great flexibility and maneuverability.

Category：

Product

+86-13906442325

0531250200@163.com

E-mail

Related Products

Message

Product Description

Features of electric concrete placing boom:

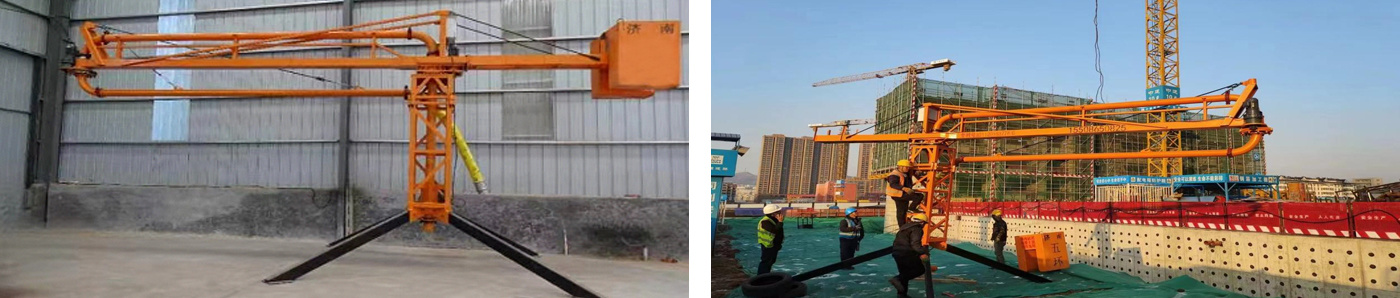

The two-section arm has horizontal luffing, compact structure, can be hoisted and moved, and does not need to be fixed during use. It can be lifted to a suitable pouring location by using lifting equipment as needed, and can be placed on the floor, platform, simple rack or trailer, which has great flexibility and maneuverability. In addition, it can be lifted away from the construction area when not in use, which does not affect other processes and is easy to maintain. It is not affected by the size and shape of the construction layer and can adapt to the needs of various construction floors and complex construction sites. Remote operation saves labor and improves work efficiency.

Performance parameters

Electric concrete placing boom parameters
18m electric concrete placing boom parameters	project	unit	Technical Parameters	Remark
	cloth radius	m	18
	front motor	kw	0.75
	rear motor	kw	1.5
	own weight	t	1.96
	Counterweight	t	1.2	Contains concrete

15m electric concrete placing boom parameters	cloth radius	m	15
	front motor	kw	0.75
	rear motor	kw	0.75
	own weight	t	1.7
	Counterweight	t	1	Contains concrete

13m electric concrete placing boom parameters	cloth radius	m	13
	front motor	kw	0.75
	rear motor	kw	0.75
	own weight	t	1.33
	Counterweight	t	1	Contains concrete

Packing and shipping

The company builds its brand with image and enters the market with its business philosophy, and takes the principle of making products seriously and providing services honestly. It has won praise in the construction of major projects at home and abroad, and has won the trust and support of users.

Case

It has a complete management method, and can give full play to team spirit, continuously innovate, and develop more energy-saving, environmentally friendly, and smarter products to serve the majority of users.
